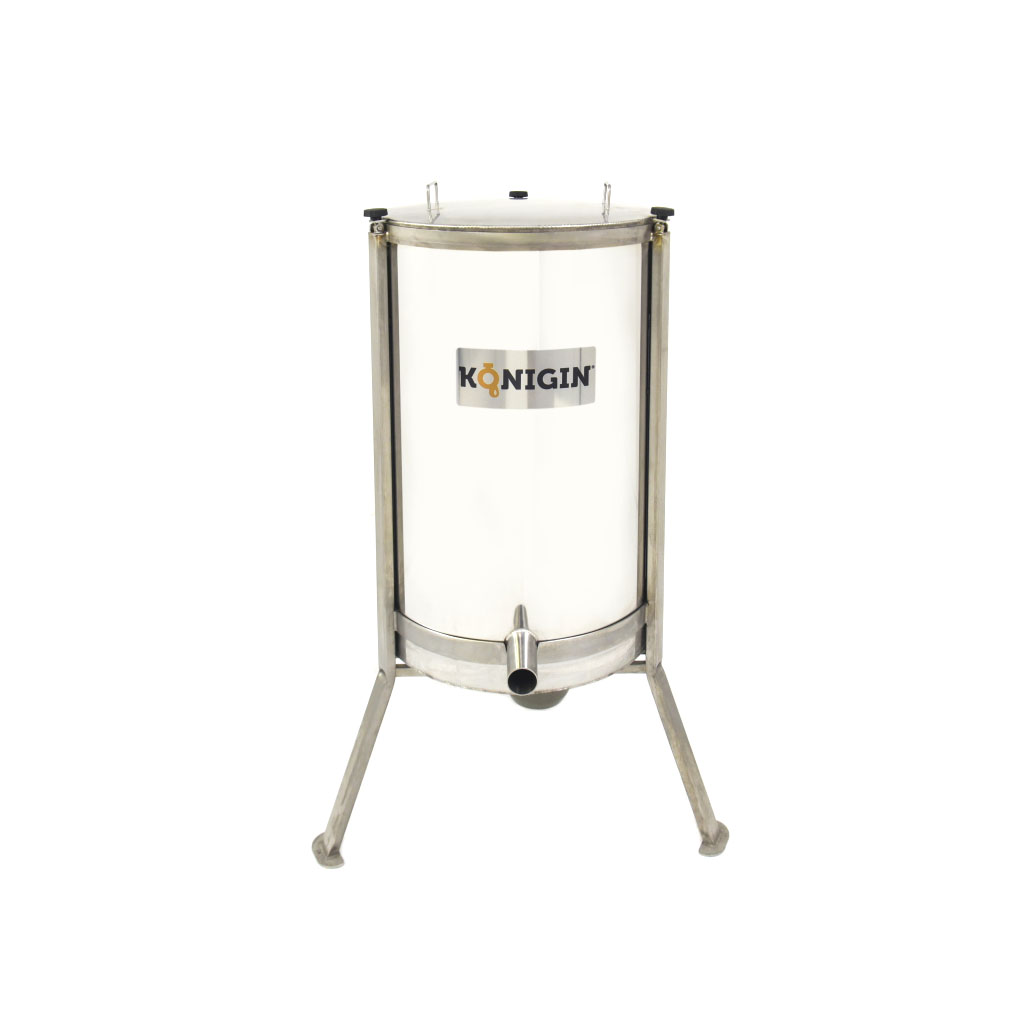

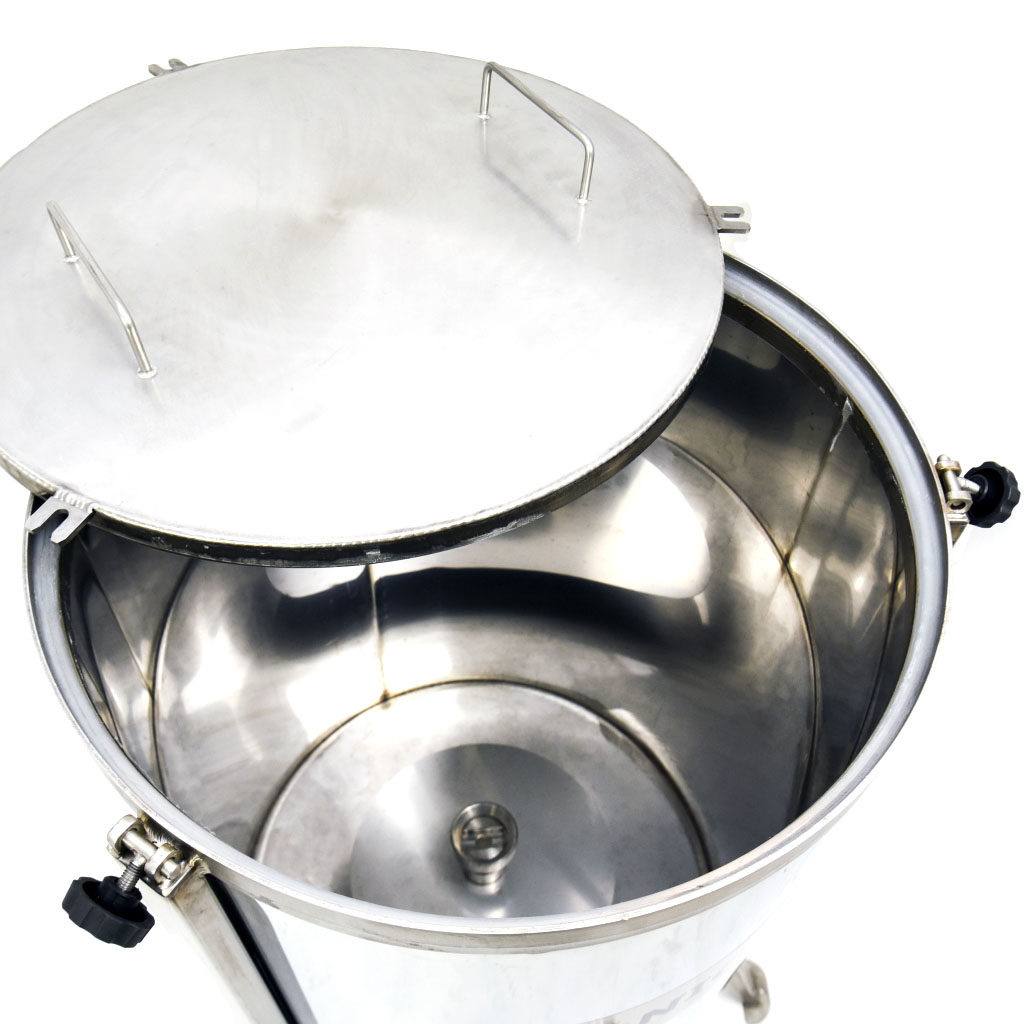

VC-74-230-SZ Wax melter and extractor 74 cm, electrically heated, lockable lid with bearing, double-walled

Name: VC-74-230-SZ Wax melter and extractor 74 cm, electrically heated, lockable lid with bearing, double-walled
SKU: VC-74-230-SZ
Availability: InStock

3651 € Net price: 2875 €

Do you have a question? Call us!
+36 30 345 5165

SKU: VC-74-230-SZ Category: Wax melting and wax-honey separating Tag: wax melter

Description
User's manual

Wax Melter and extractor

This wax melter and extractor features an insulated design with a 740 mm diameter. It effectively melts wax and separates it from honey, ensuring efficient processing. Ideal for beekeepers looking for a reliable solution to manage wax with minimal heat loss. The insulated construction helps maintain consistent temperatures and improve overall efficiency.

Material of the rotating basket:	1.4301
Diameter of the rotating basket:	690 mm
Height of the rotating basket:	485 mm
Inner diameter of the wax melter:	760mm
Outer diameter of the wax melter:	810mm
Height of the honey tap with standard feet:	430 mm
Height of the mantle:	760 mm
Material thickness of the bottom:	thickness 2,0mm
Material type and thickness of the lid:	1.4301, thickness 1,5mm
Material type and thickness of the mantle:	1.4301, thickness 1,0mm
Heat isolation betwen the mentle walls:	20mm Stone whool

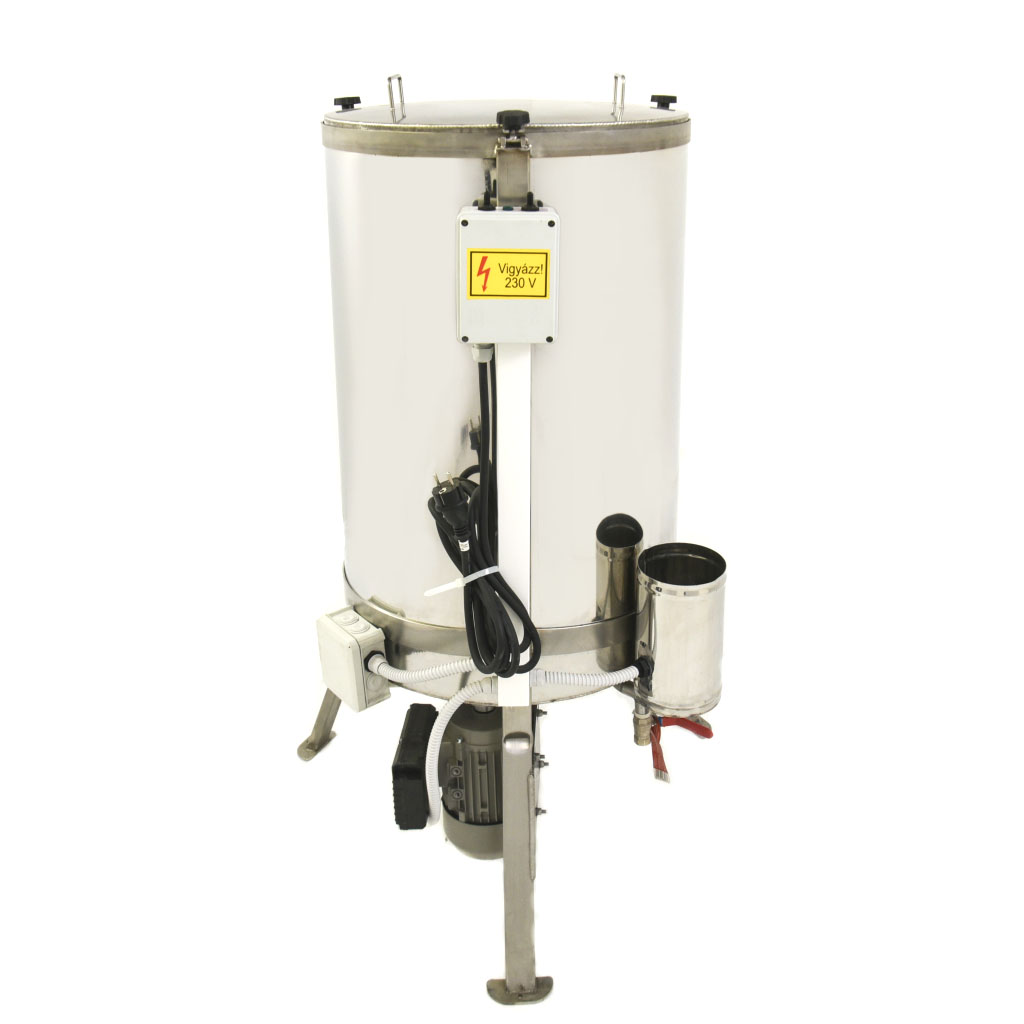

Drive:	230 V motor driven
Power:	3370 W
Rotation speed of the basket per minute:	100 – 250

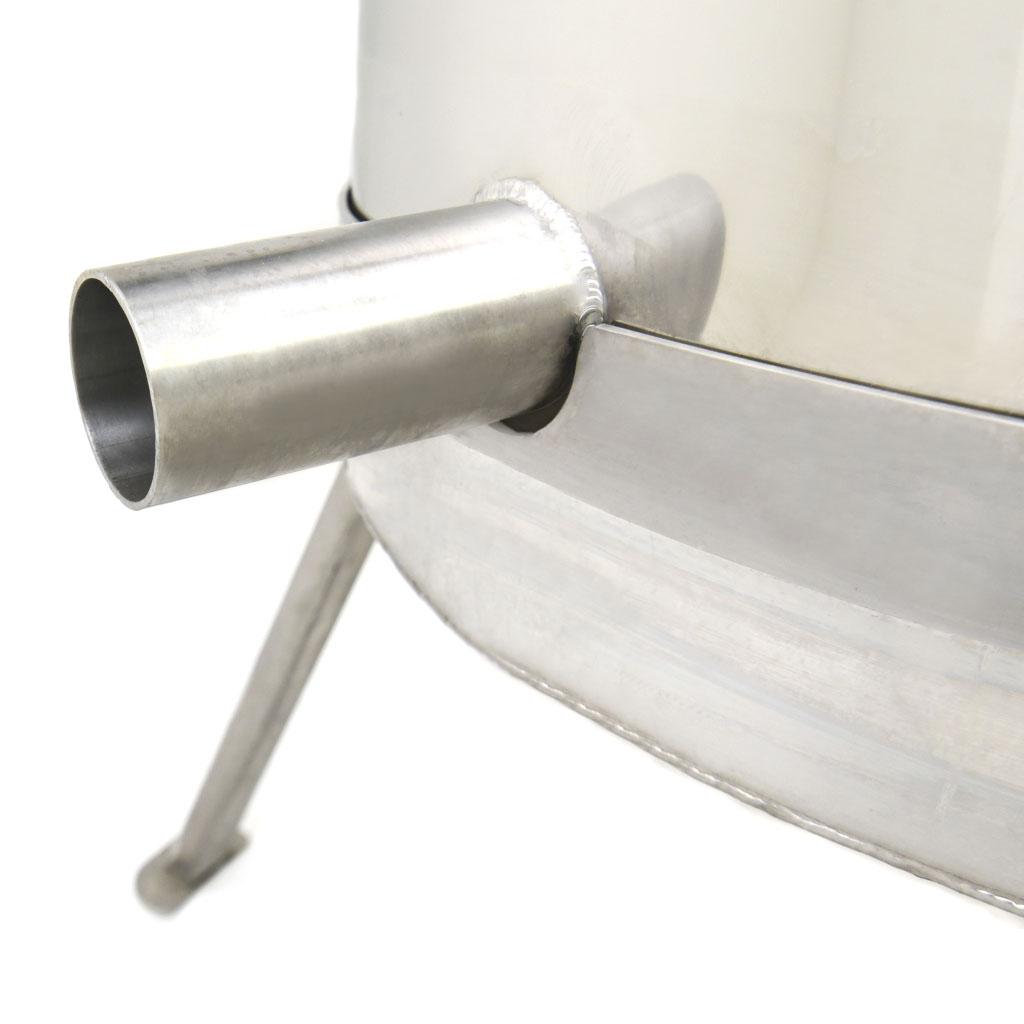

Material of the honey tap:	stainless steel
Machine controlling:	semi-automatic
Guarantee	2 years
Weight:	104 kg

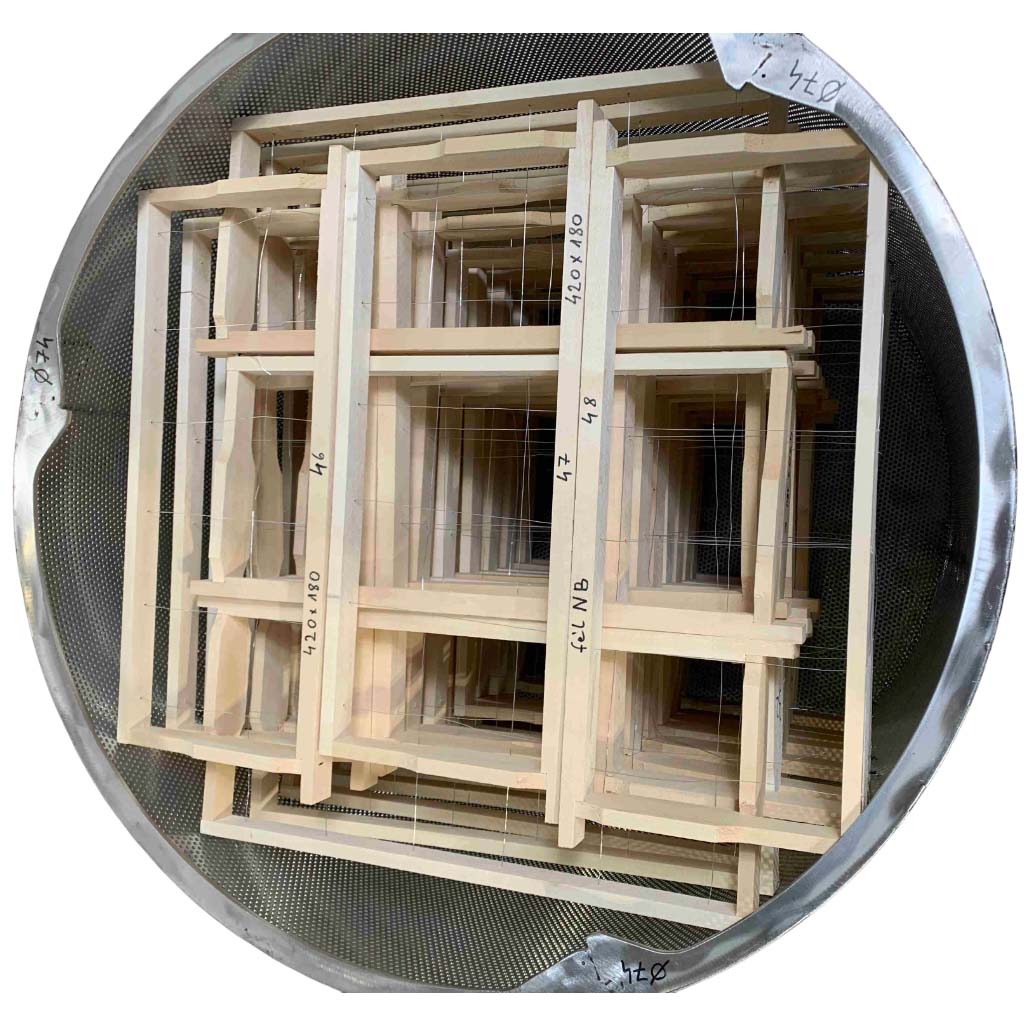

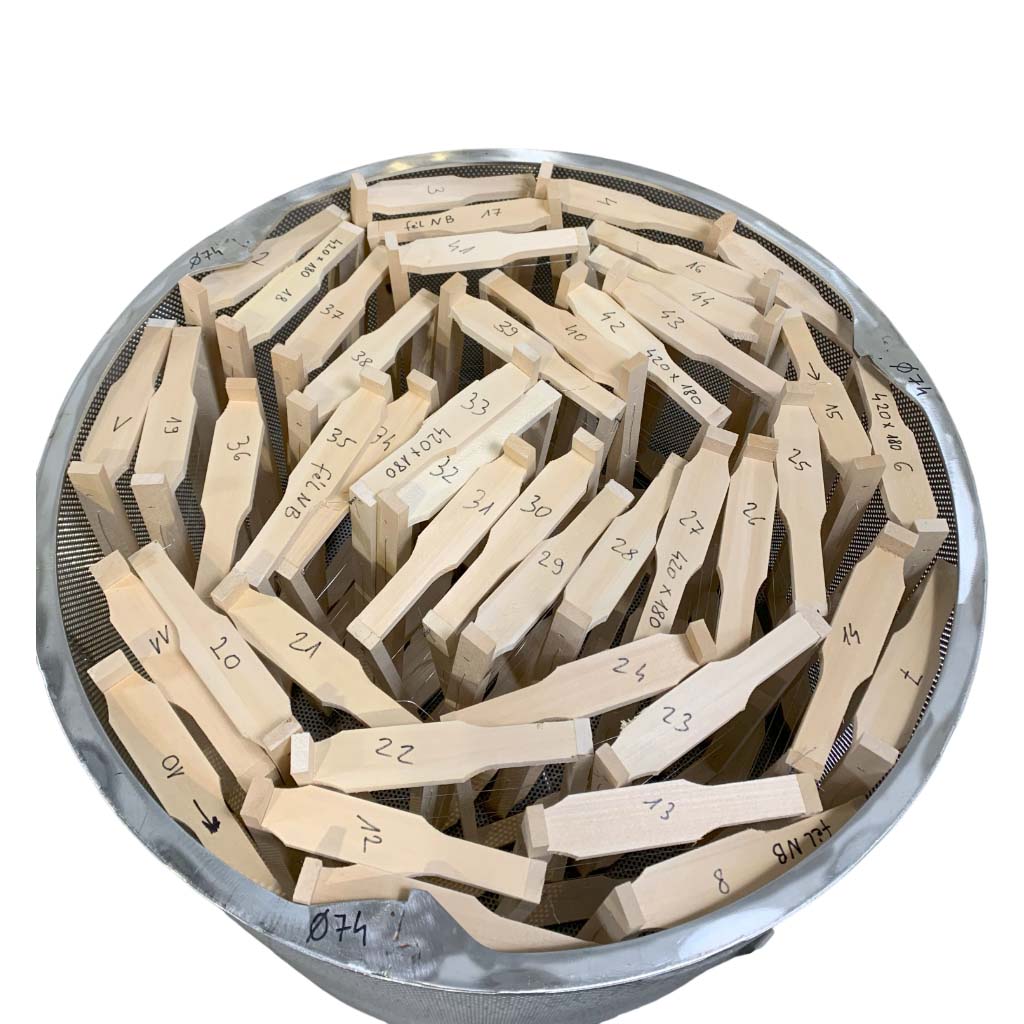

Frame size (B) height of the frame

Viaszolvasztó- és centrifuga nyitott, elektromos, felül csapágy nélkül, alul dupla csapágyazás

Wax-Melting-Centrifuge_EN

VC-74-230-SZ Wax melter and extractor 74 cm, electrically heated, lockable lid with bearing, double-walled

Viaszolvasztó- és centrifuga nyitott, elektromos, felül csapágy nélkül, alul dupla csapágyazás
